Platform
-
Model Name

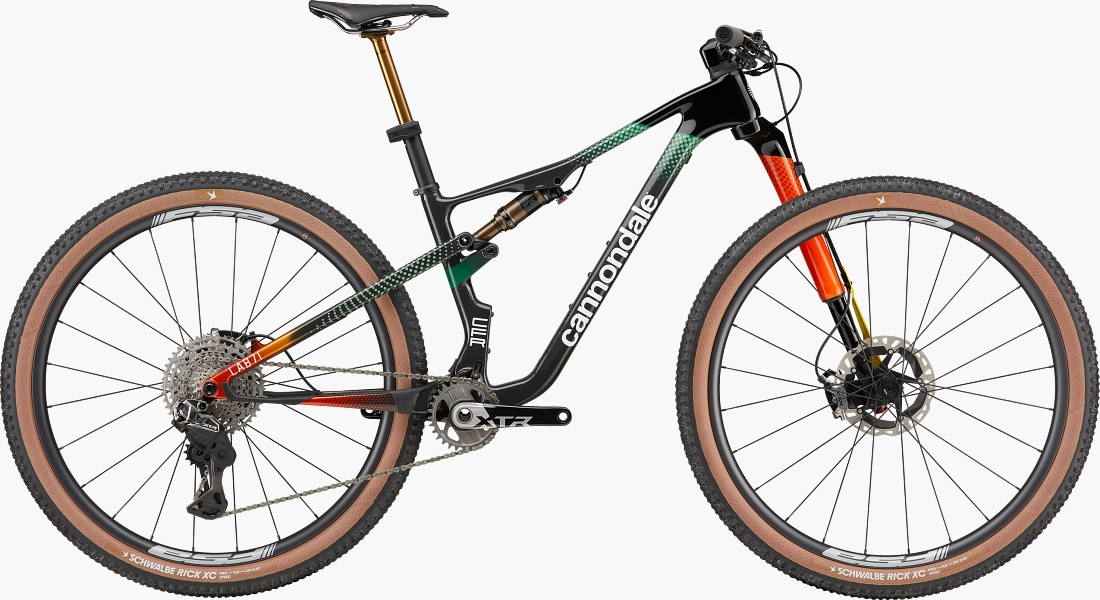

Scalpel LAB71 Team -
Model Code
C24035U
Frameset
-
Frame
Scalpel LAB71, Series 0 Carbon construction, 120mm travel, Proportional Response Suspension and Geometry, FlexPivot Chainstay, full internal cable routing, 73mm BSA, 1.5″ headtube with 1-1/8″ upper reducer/internal cable guide, 148x12mm thru axle, 55mm chainline, UDH, post-mount disc – 160mm native -
Fork
Lefty Ocho 120 Carbon, 120mm, Chamber Damper, OppO Spring System, tapered steerer, 50mm offset, TwistLoc Ultimate remote dual lockout -
Headset
Acros ICR -
Rear Shock
Fox Float SL Factory EVOL SV, Kashima, 190x45mm, custom tune, TwistLoc Ultimate remote dual lockout
Drivetrain
-
Rear Derailleur
Shimano XTR Di2 M9250 wireless electronic, 12-speed -
Shifters
Shimano XTR Di2 M9250 wireless electronic, I-SPEC EV, 12-speed -
Chain
Shimano XTR, 12-speed -
Crank
Shimano XTR M9200, 30T -
Rear Cogs
Shimano XTR 9200, 9-45, 12-speed -
Bottom Bracket
Shimano BSA 73mm
Brakes
-
Brakes
Shimano XTR M9220 4-piston hydraulic disc, 180/160mm MT905 6-bolt rotors -
Brake Levers
Shimano XTR M9220 hydraulic disc
Wheels
-
Front Hub
FSA Lefty -
Rear Hub
FSA X-900 -
Rims
FSA KFX Team Edition Carbon, 24h, 30mm inner width, hookless, tubeless ready -
Spokes
Straight pull Aero -
Tire Size
2.4 -
Wheel Size
29 -
Tires
Schwalbe Rick XC Pro, 29×2.4″, Speed Compound, tubeless ready -
Front Tire
Schwalbe Rick XC Pro, 29×2.4″, Speed Compound, tubeless ready -
Rear Tire
Schwalbe Rick XC Pro, 29×2.4″, Speed Compound, tubeless ready
Components
-
Handlebar
SystemBar XC-One Flat, carbon, integrated bar/stem, internal cable routing, 5° upsweep, 8° backsweep, 760mm width, -6° stem, 1-1/8″ clamp -
Stem
SystemBar XC-One Flat, carbon integrated bar/stem -
Grips
SRAM Silicone -
Saddle
Prologo Dimension NDR, Tirox rails -
Seatpost
Fox Factory Transfer Neo wireless electronic, 150mm drop, 31.6
Connectivity
-
Components
Cannondale Wheel Sensor
Extra
-
Extra 1
Tubeless Valves, SystemBar Garmin/Wahoo Computer Mounts, Shimano charger
