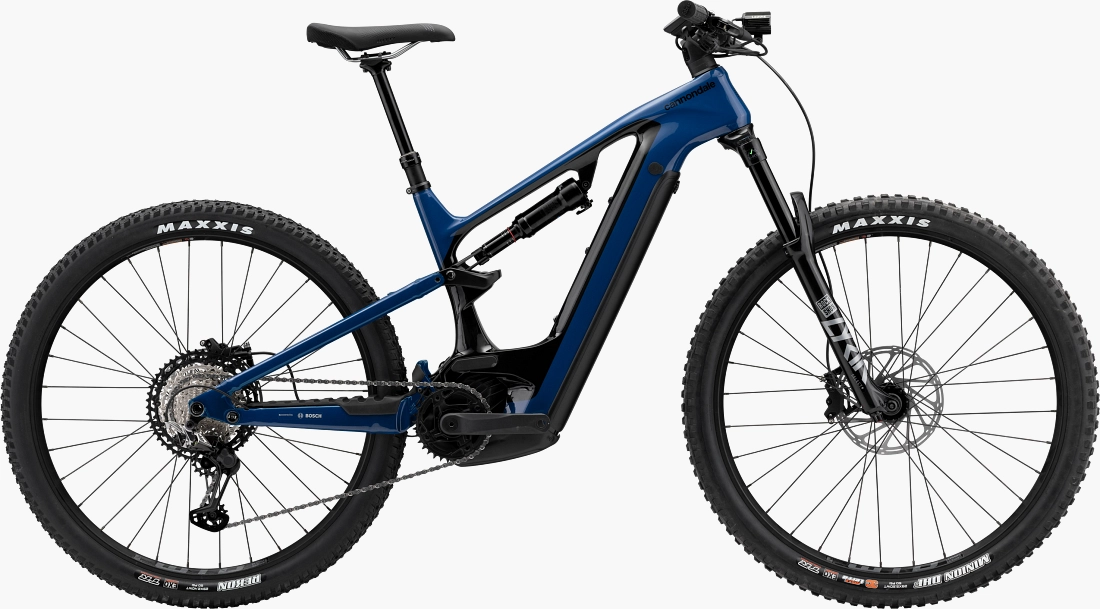

Cannondale23 Moterra Neo Carbon 1

R 119,999.00 inc. VAT

Breaking Boundaries

A dual-suspension e-mountain bike built to crush boundaries. With its intuitive handling & the power and range of the Bosch 750Wh system, nothing is out of reach.

Where it thrives

Challenging trails, Up and down hills, Out in the elements

What it’s built for

Handling, Traction, Efficiency, Durability

Highlights

  • Proportional Response Tuned carbon frame / RockShox Lyrik Select+ fork, 150mm travel
  • Bosch SmartSystem -750wh battery & Performance CX motor
  • Shimano XTR/XT 12-speed drivetrain
Add to quote
Categories: , ,

Description

Specs

Details

  • Platform

    Moterra Neo

  • Model Name

    Moterra Carbon 1

  • Model Code

    C25152U

Frameset

  • Frame

    Moterra Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount

  • Fork

    RockShox Lyrik Select+, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 44mm offset

  • Headset

    Acros integrated sealed bearing, tapered

  • Rear Shock

    RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound

E-System

  • Drive Unit

    Bosch Performance Line CX 250W

  • Battery

    Bosch PowerTube, 750Wh

  • Charger

    Bosch 4A

  • Display

    Bosch Kiox 300 w/ LED remote

  • Certifications

    UL2849

Drivetrain

  • Rear Derailleur

    Shimano XTR

  • Shifters

    Shimano XT, 12-speed

  • Chain

    Shimano XT, 12-speed

  • Crank

    FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T

  • Rear Cogs

    Shimano XT, 10-51, 12-speed

Brakes

  • Brakes

    Shimano XT 8120 4-piston hydraulic disc, 203/203mm RT76 rotors

  • Brake Levers

    Shimano XT hydraulic disc

Wheels

  • Rims

    WTB KOM Trail i30 TCS, 32h, tubeless ready

  • Spokes

    DT Swiss Champion

  • Tire Size

    2.6

  • Wheel Size

    29

  • Hubs

    (F) Formula 15x110mm thru-axle / (R) DT Swiss, 12x148mm thru-axle

  • Tires

    (F) Maxxis Minion DHF, 29×2.6″, EXO, tubeless ready / (R) Maxxis Rekon, 29×2.6″ (27.5×2.6″ – size Small), EXO, tubeless ready

  • Front Tire

    Maxxis Minion DHF, 29×2.6″, EXO, tubeless ready

  • Rear Tire

    Maxxis Rekon, 29×2.6″ (27.5×2.6″ – size Small), EXO, tubeless ready

Components

  • Handlebar

    HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm

  • Stem

    Cannondale 2, 6061 Alloy, 35mm, 0°

  • Grips

    Fabric FunGuy

  • Saddle

    Fabric Scoop Shallow Elite, cro-mo rails

  • Seatpost

    Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL)

Extra

  • Extra 1

    Lezyne Super HB STVZO E1000 w/ remote high beam switch. (Note: this model is not compatible with Bosch Range Extender)
